PFTH

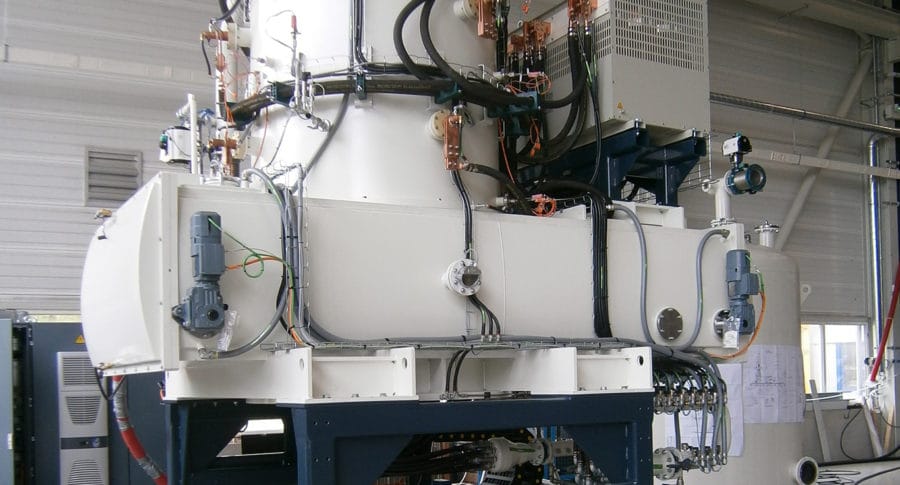

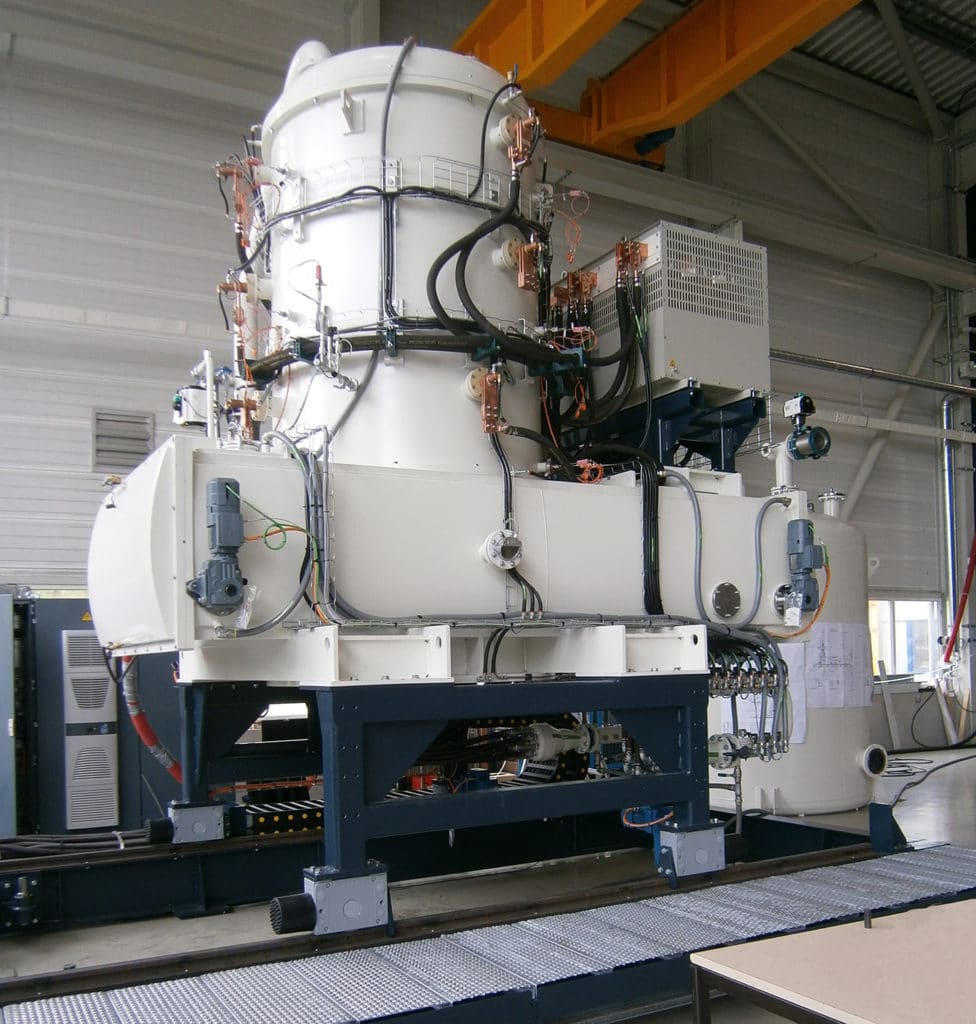

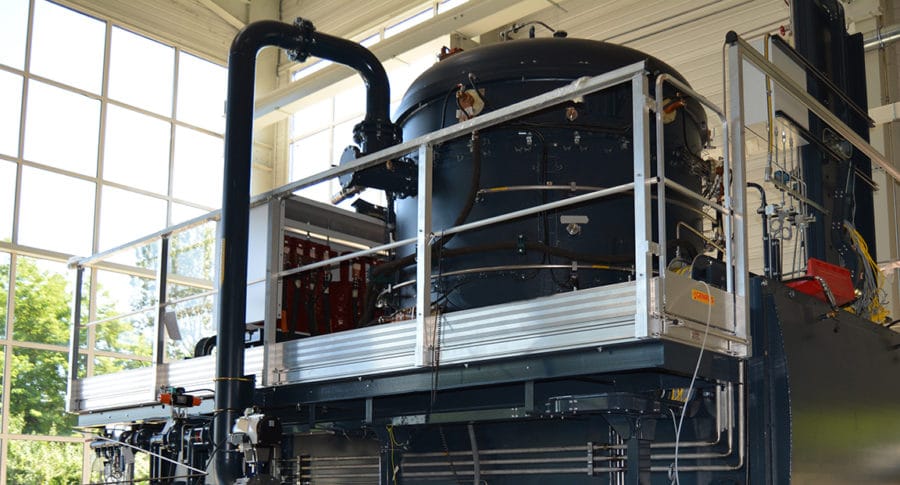

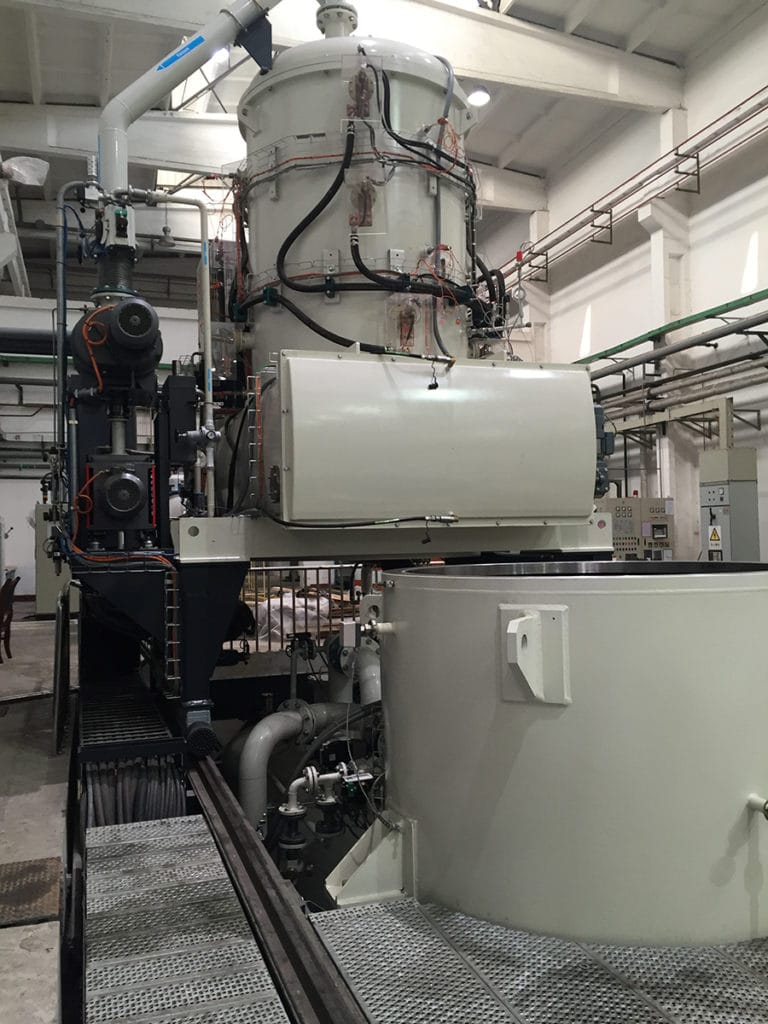

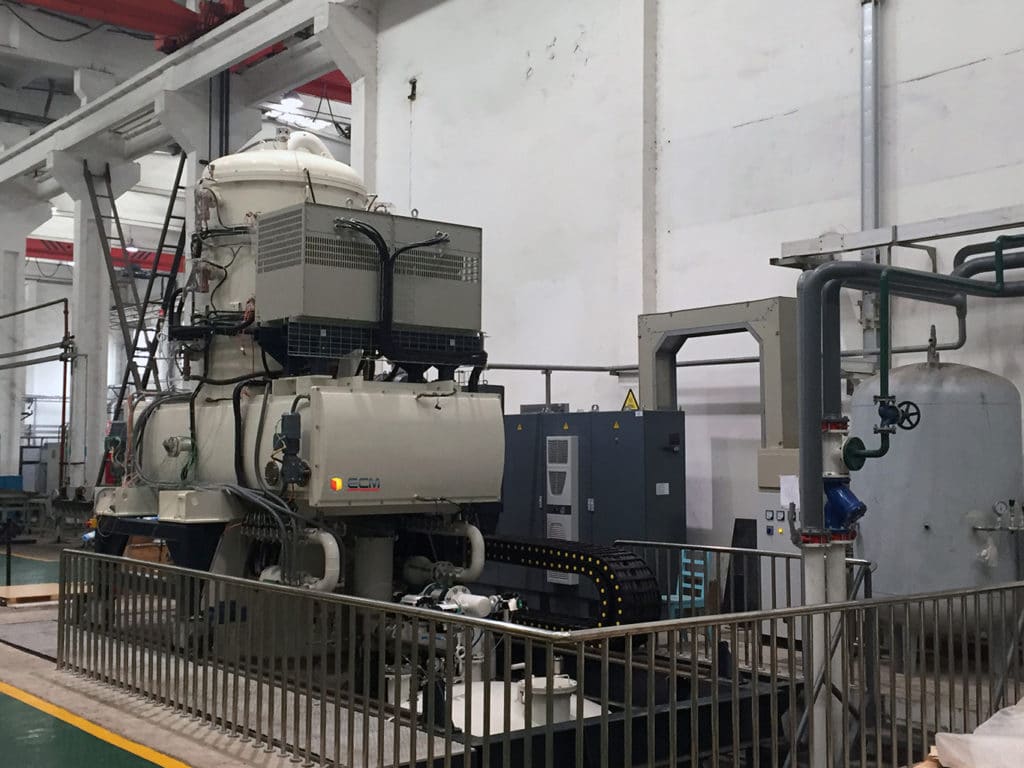

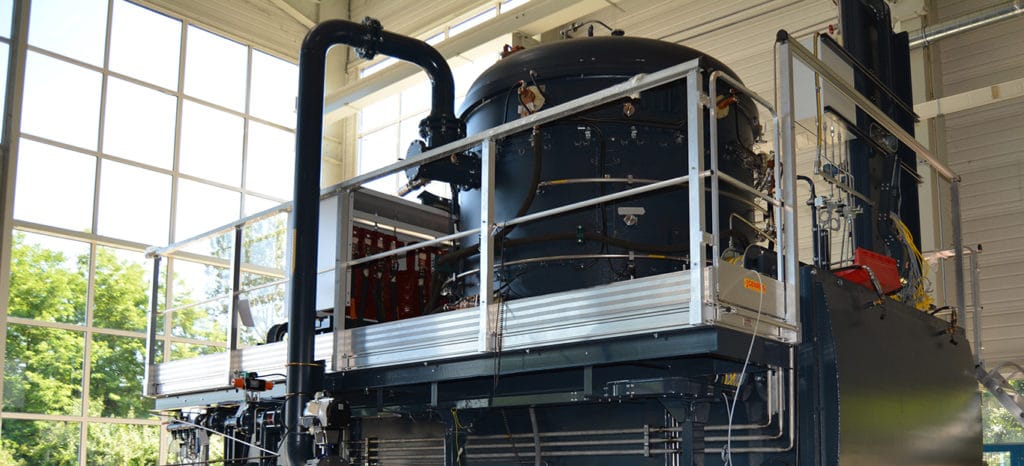

VERTICAL VACUUM OIL QUENCHING FURNACE DEDICATED TO LARGE SIZED LOADS

Our PFTH furnaces are particularly adapted to the treatment of large size parts mainly found in aeronautical applications, such as landing gears. They also are present in other industries that need to process heavy loads or long shafts.

This fully automated installation is specifically recommended for perfect reproducibility of results and increased productivity.

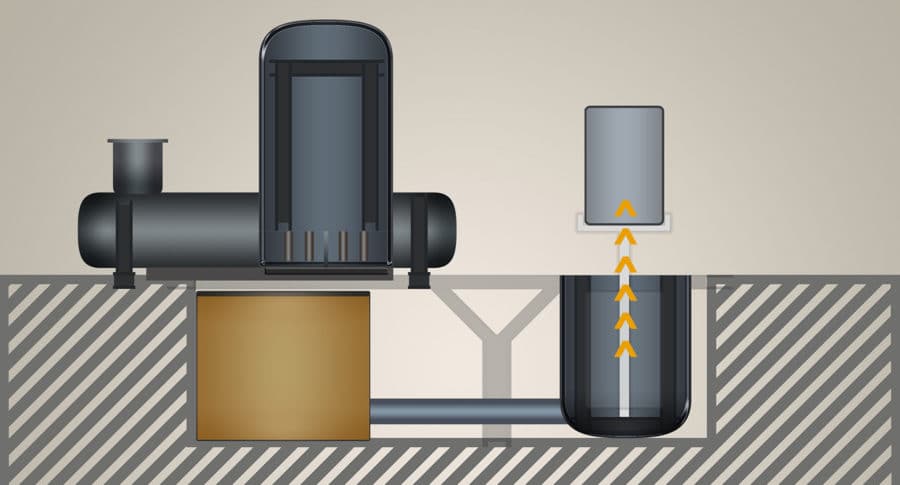

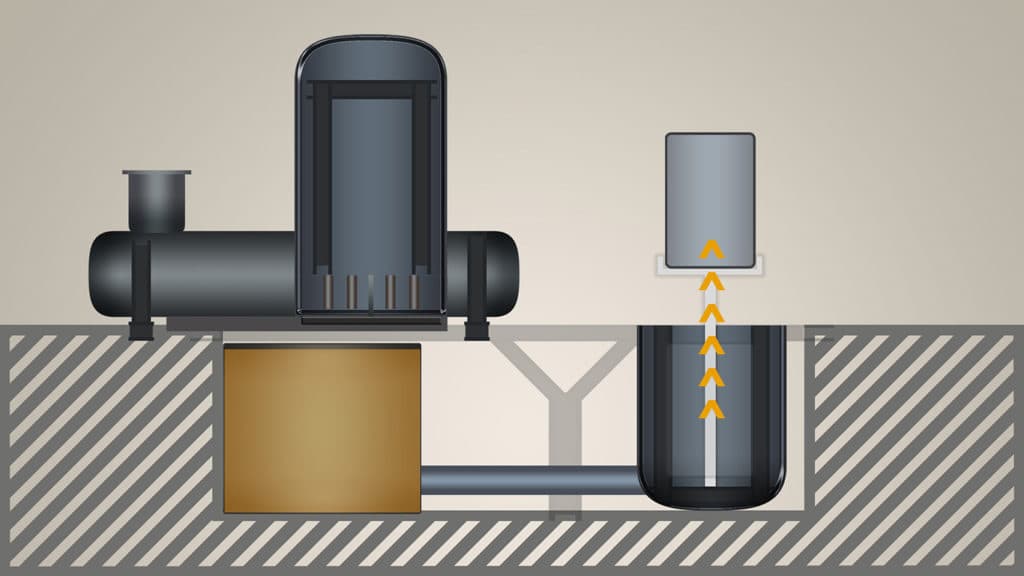

PFTH design relies on 4 main features:

1. A high-temperature furnace (up to 1350°C) using low pressure carburizing solutions developed by ECM Technologies.

2. A high-efficiency oil quenching tank with cold water double-wall and integrated propellers.

3. An oil buffer tank, fully integrated underground in order to save floor space .

4. A mechanized elevator system, fast load transfer cycles. An original motorized clamp system supports the load in the furnace.

  • Low pressure carburizing
  • Oil quenching under vacuum
  • Tempering

PFTH 900

900 x 1800 (D x H) up to 1000KG

PFTH 1500

1500 x 1500 (D x H) up to 2000KG

More sizes available : Contact us

  • Compatible with
    • AMS2750
    • CQI9
  • Water loop for cooling
  • Secondary vacuum
